• solid metal housing
  • 200/500 Ohm (super-directional, ultra-noise compensating)
  • PVC-cable 2-wired, shielded, 1,5m
  • l = 80mm; Ø = 24mm; 70g (TM168)
  • elegant gooseneck
  • for stationary use
  • with M10 thread at both ends
  • max. bend radius r~75
  • solid gooseneck
  • for stationary use
  • for mobile use in short lenghts
  • with M10 thread at both ends
  • extrem solid gooseneck
  • for mobile use
  • for stationary use in rough conditions
  • with M10 thread to microphone head

HV5

  • handmicrophone holder
  • for DD/TM series
  • with reedswitch magnet (HV5/2)
  • solid fastening angle
  • aluminium (BW1)
  • steel panel (BW3)

BP1

  • massive base plate
  • gray cast iron
  • for standing installation of 11mm and 15mm
  • goosenecks (M10) and 18mm goosenecks (M14)
  • solid plastic housing
  • high quality push-button on 11mm Ø gooseneck
  • with holder
  • solid plastic housing
  • dust- and splash-proof (IP54)
  • 8 Ohm, 7 - max. 10 watt
  • solid plastic housing
  • 4 Ohm, max. 5 watt
  • PVC-cable 2-wired
  • solid plastic housing
  • for radio optimized frequency range (KL1)
  • for GSM extended frequency range (KL1/B)
  • solid plastic housing with 4 rubberfeets
  • gooseneck-microphones (TM168/169/170, ME251/351 ...) mounted at baseplate
  • different microphone impedances and types (dyn./electr.)
  • built-in loudspeaker (8 Ohm/3 watt)
  • solid metal housing with 4 rubberfeets
  • gooseneck-microphones (TM168/169/170, ME251/351 ...) mounted at baseplate
  • different microphone impedances and types (dyn./electr.)
  • connection on rear side using panel jacks or fix mounted cables with anti-kink sleeve
  • short form-stable plastic cradle for HA26 and HA65
  • high form (A12) with base plate (l · w · d = 78 · 65 · 42 mm)
  • flat form (A12/2) without base plate (l · w · d = 78 · 65 · 22 mm)
  • form stable plastic cradle for HA10, HA11 and HA26
  • cradle (A10) with handset locking in the cradle and
  • manual release via buttons
  • extremely small form stable plastic cradle for HA8 and HA87
  • l · w · d = 55 · 50 · 10mm
  • solid and climate stable plastic housing
  • especially suitable for very low required space as a control-handset for analog and digital mobile communication systems
  • 1 push-to-talk button "PTT"
  • solid and climate stable plastic housing
  • especially suitable as a control-handset for analog and digital mobile communication systems
  • 1 push-to-talk button "PTT"
  • solid and climate stable plastic housing
  • especially adapted for train and police applications with large push-to-talk button
  • 1 push-to-talk button "PTT" (TF)

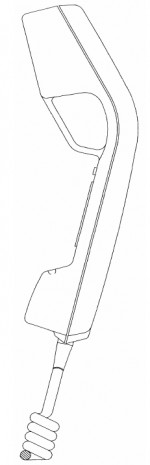

  • solid plastic housing with (HA10) or without thumb holder (HA11) with climate stable capsules
  • 1 push-to-talk button "PTT" (TF)
  • 1 push-to-talk button "PTT" (TF) and cradle-loudspeaker (LS)
  • elegant solid plastic housing
  • especially suitable for very low required space in mobile use and for disguised police applications
  • 1 push-to-talk button (PTT)
  • solid plastic housing
  • 1 push-to-talk button "PTT" (ML71)
  • 1 push-to-talk button "PTT" & 2 push-buttons for remote control (ML70)
  • solid plastic housing
  • dust- and splash-proofed (IP54)
  • 1 push-to-talk button "PTT" (ML41)
  • 1 push-to-talk button "PTT" & 2 call buttons (ML42)
  • handsome and climate-resistant plastic housing
  • especially designed for desktop mounting
  • elec. 1,5 kOhm (unidirectional, noise compensating placed
  • in boundary surface)
  • solid housing with rubber coating
  • dust- and splash-proofed (IP54)
  • especially designed for outdoor observation
  • elec. 1,5 kOhm (omnidirectional)
  • shapely plastic housing
  • solid and climate resistant miniature type
  • two output levels: normal (HL), low (LL)
  • 1,6 kOhm (super-directional, ultra-noise compensating placed in boundary surface)
  • solid and climate resistant plastic housing
  • 1,6 kOhm (unidirectional, noise compensating)
  • PVC-cable 1-wired, shielded, 3,5m
  • holder HV20 with self-adhesive hook and loop tape
  • solid and climate resistant plastic housing
  • built-in windscreen
  • with and without preamplifier (adjustable)
  • available also as groundfree version (ME253)
  • solid and climate resistant plastic housing
  • two output levels: normal (HL), low (LL)
  • 1,6 kOhm (unidirectional, noise compensating)
  • PVC-cable 1-wire, shielded
  • solid and shapely brass housing
  • dust- and splash-proofed (IP54)
  • 1,5 kOhm (omnidirectional)
  • PVC-cable 1-wire, shielded, 2,8m
  • solid metal housing
  • System "INTERCEPT"* splash-proofed
  • especially designed for outdoor units
  • 200 Ohm (unidirectional, noise compensating)
  • solid metal housing
  • 200 Ohm (super-directional, ultra-noise compensating)
  • PVC-cable 2-wired, shielded, 2m
  • l = 90mm; Ø = 29mm; 150g
  • solid metal housing
  • dust- and splash-proofed (IP54)
  • 200 Ohm (omnidirectional)
  • PVC-cable 2-wired, shielded, 1,5m
  • solid metal housing
  • 1 push-to-talk button "PTT" (TF)
  • 1 push-to-talk button "PTT" & 1 call button (TFR)
  • 1 double-push-button for radio and microphone (TTF)
  • solid metal housing
  • 1 push-to-talk button "PTT" (TF)
  • 1 push-to-talk button "PTT" & 1 call button (TFR)
  • 1 push-to-talk button "PTT" & 1 volume control button (TFP)
  • solid metal housing
  • 1 push-to-talk button "PTT" (TF)
  • 1 push-to-talk button "PTT" & 1 call button (TFR)
  • 200 Ohm (omnidirectional)
