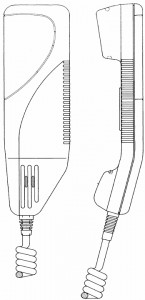

Handset HA26

  • solid and climate stable plastic housing
  • especially adapted for train and police applications
    with large push-to-talk button
  • 1 push-to-talk button “PTT” (TF)
  • 1 push-to-talk button “PTT” & 1 call button (TFR)
  • 1 push-to-talk button “PTT” & 2 call buttons (TF2R)
  • built-in handsfree microphone (FS-MICRO)
  • short cradles A12, A12/2 (flat) and long cradles (A10) with handset locking in the cradle
  • manual release via buttons or automatic release (ZR)
  • electret microphone 1 kOhm (unidirectional, noise compensating)
  • cradle A10 with locking of the handset in the cradle,
  • earphone 300 Ohm / max. 0,03 watts
  • 0,3 m* PUR spiral cable 7-adrig, 1 wire shielded
  • direct connection or over cradle with socket
  • l · w · d = 210 · 58 · 40 mm; 250g
  • option: preamplifier, customized connectors, various spiral cables and impedances,
    control-and display-elements in the cradle A10, flame-retardant plastic housings,
    reed-switch in handset with magnet in the cradle

*= unstretched spiral length

Art.-no. Description
2506-113-000-51 HA26/LN/TF/V521/C166 **
2506-114-000-51 HA26/LN/TF/V522/C166/St. BOS- U127/U **
2506-172-001-51 HA26/LN/TF/V559/C166/A10 Entr. rot/lock-button red (FR110)
2506-172-000-51 HA26/LN/TF/V559/C166/A10 (FR110)
2506-132-000-51 HA26/LN/TF/V559/C166/A12/St. BOS RJ45
2506-112-000-51 HA26/LN/TF2R/V517/FS-MICRO/C166/St. BOS U-127/U **
2506-115-000-51 HA26/LN/TF2R/V523/C166/St. BOS U-127/U **

**= without cradle
